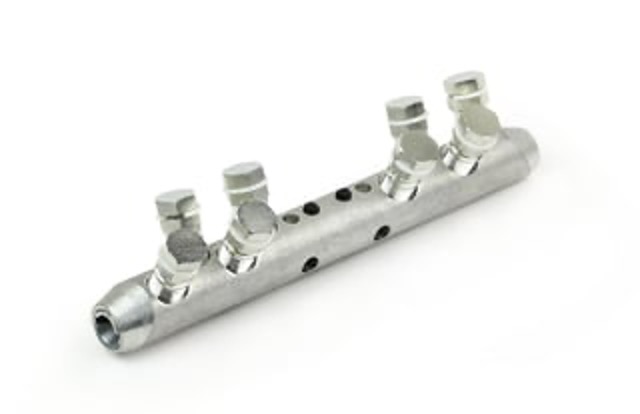

MechaSplice® Mechanical Tension Repair Splices (MTRS)
The Mechanical Tension Repair Splice MechaSplice® Series is an industry-leading mechanical tension repair splice designed for medium-voltage (MV) applications. Engineered for slack or tensioned, bare or covered cables, this advanced splice solution ensures a reliable, corrosion-resistant connection without the need for extra tools or complex installations.
Built to comply with AS/NZ 1154.1, ANSI C119, and IEC 61284, C119.4 standards, the MTRS Series provides superior range-taking ability and high-strength performance, rated up to 10,000 lbs. Featuring double shear head bolts, this design eliminates direct bolt-to-conductor contact, preserving the integrity of the cable and removing the risk of damage.
The wave-patterned distension increases friction significantly, securing a firm grip for long-term durability. With its easy, tool-free installation using standard line truck tools, the MTRS Series reduces human error and streamlines the repair process for right-of-way (ROW) applications, overhead, water crossings, railways, storm repairs, pole replacements, and cutouts.
Description
The MechaSplice® mechanical tension repair splice (MTRS) is designed for MV bare and covered cables in both slack and tensioned applications. Featuring easy installation, corrosion-resistant materials, and a wave-patterned grip for superior friction, this high-strength splice is ideal for overhead, water crossings, storm repairs, pole replacements, Right of Ways (ROW), and more.
-

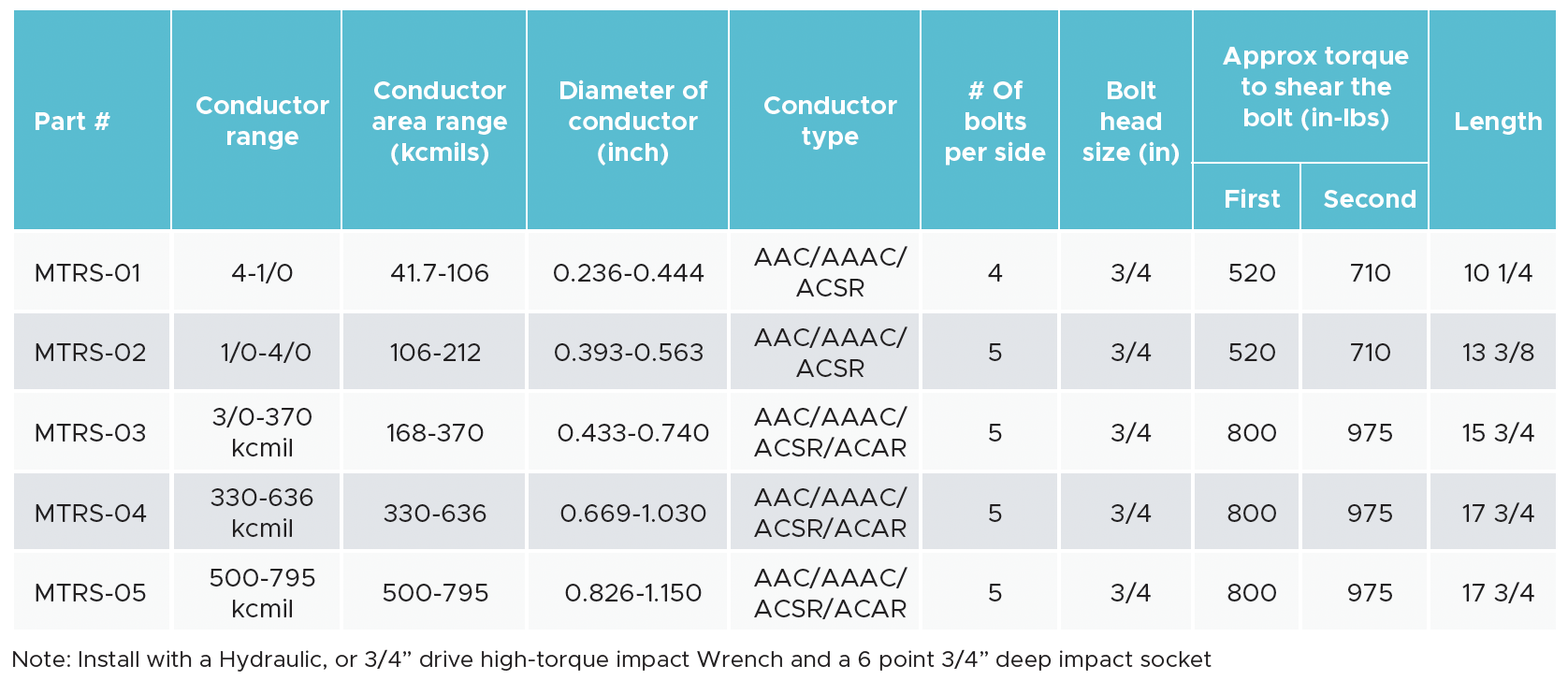

Options for conductors ranging 0.27-1.15 in / .6-2.9 cm
-
Complies with AS/NZ 1154.1 ANSI C119-IEC 61284, C119.4
-
Ensures optimum install torque, removing chance of human error
-
Double shear head bolts
-
Bolts never come in contact with the conductor
-
Easy installation – no extra tools
-
No dissimilar metals – no corrosion
-
Cable is distended in a wave pattern to greatly increase friction
-
Rated for 10,000 lb
-
Ideal for overhead, water crossings, rail, new construction, storm repair, pole replacements, cutouts, right of ways, etc.
Applications
-
Repair splice for slack tensioned cables
-
Right of way (overhead, water, rail)
-
New construction
-
Storm repair
-
Pole replacement
-
Cut outs
-
Bare or covered conductor repair
