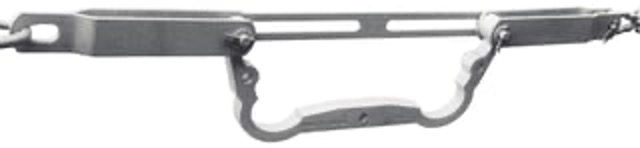

Omega® Controlled Lengthening Device
The Omega® is a passive mechanical overload protection device designed to safeguard overhead medium voltage distribution lines from excessive tension caused by ice, snow, wind, or falling trees. When conductor tension surpasses a defined threshold, the Omega activates to release controlled slack, alleviating stress on dead-end structures and preventing damage to poles, crossarms, and associated components.
This patented solution delivers independent protection to each conductor, reducing the risk of torsional failure. With a long service life, easy installation, and immediate temporary re-sagging capabilities after activation, the Omega is a trusted choice for utilities seeking to enhance line resilience and minimize outage risk during severe weather events.
Description
The Omega® is a mechanical tension control solution engineered for reliability and line protection in harsh weather conditions.
-
Protects overhead distribution lines from mechanical overload
-
Releases controlled slack when tension exceeds nominal levels
-
Prevents damage to supports, crossarms, and dead-end structures
-
Enables immediate, temporary re-sagging after activation
-
Patented design offering long lifespan and robust performance
-
Each conductor is protected independently, minimizing torsional strain
-
Easy to install and replace without complex procedures
-
Supports loads up to 30% above nominal due to ice, snow, or wind
-
Option for real-time remote monitoring with the Omega Smart DAC Monitoring System (iDAC)
Applications
-
Medium voltage overhead distribution networks
-
Areas prone to ice, snow, or wind loading
-
Mechanical overload mitigation
-
Pole and cross arm protection
-
Grid hardening and storm resilance strategies
-
Preventative infrastucture maintenance
