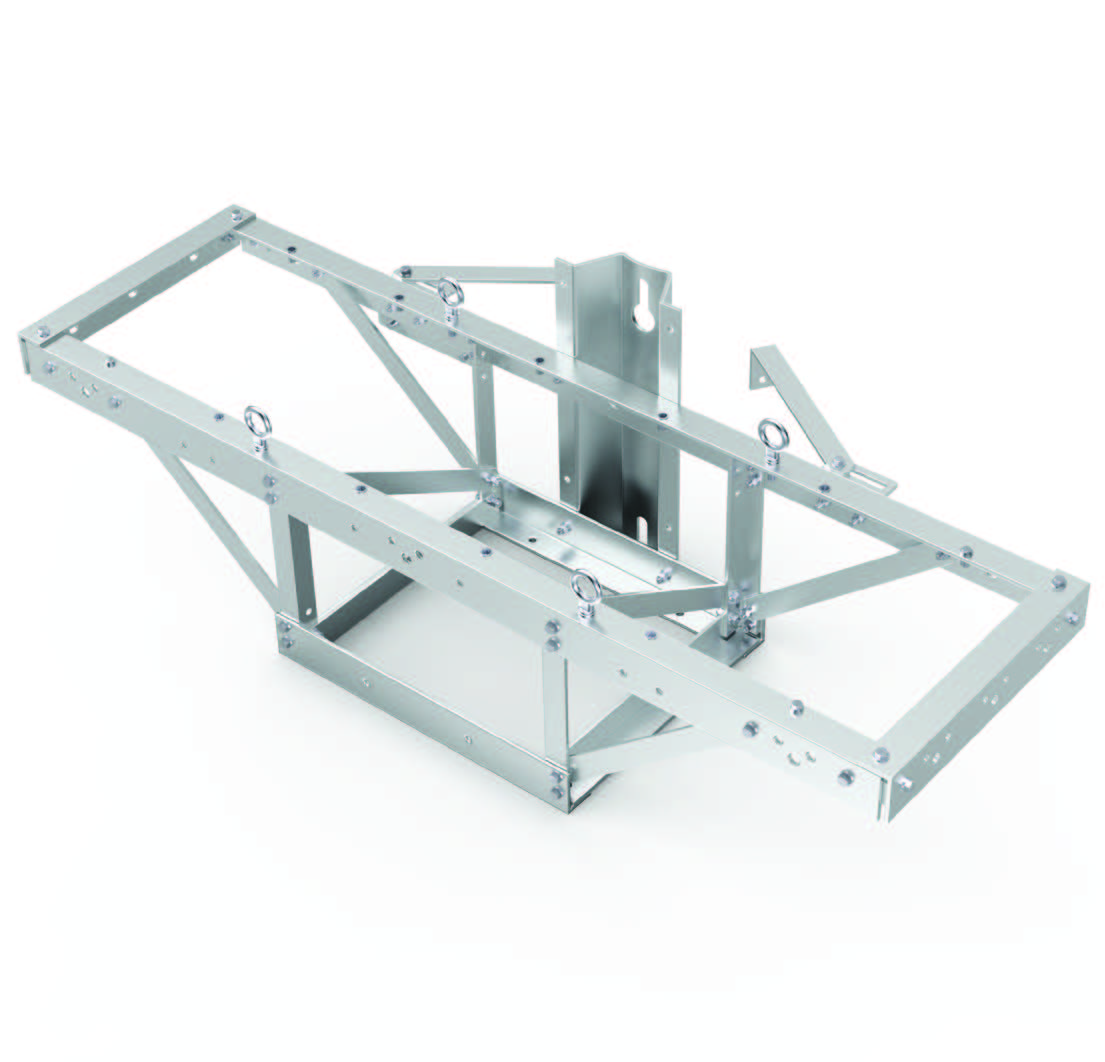

Pole capacitor rack

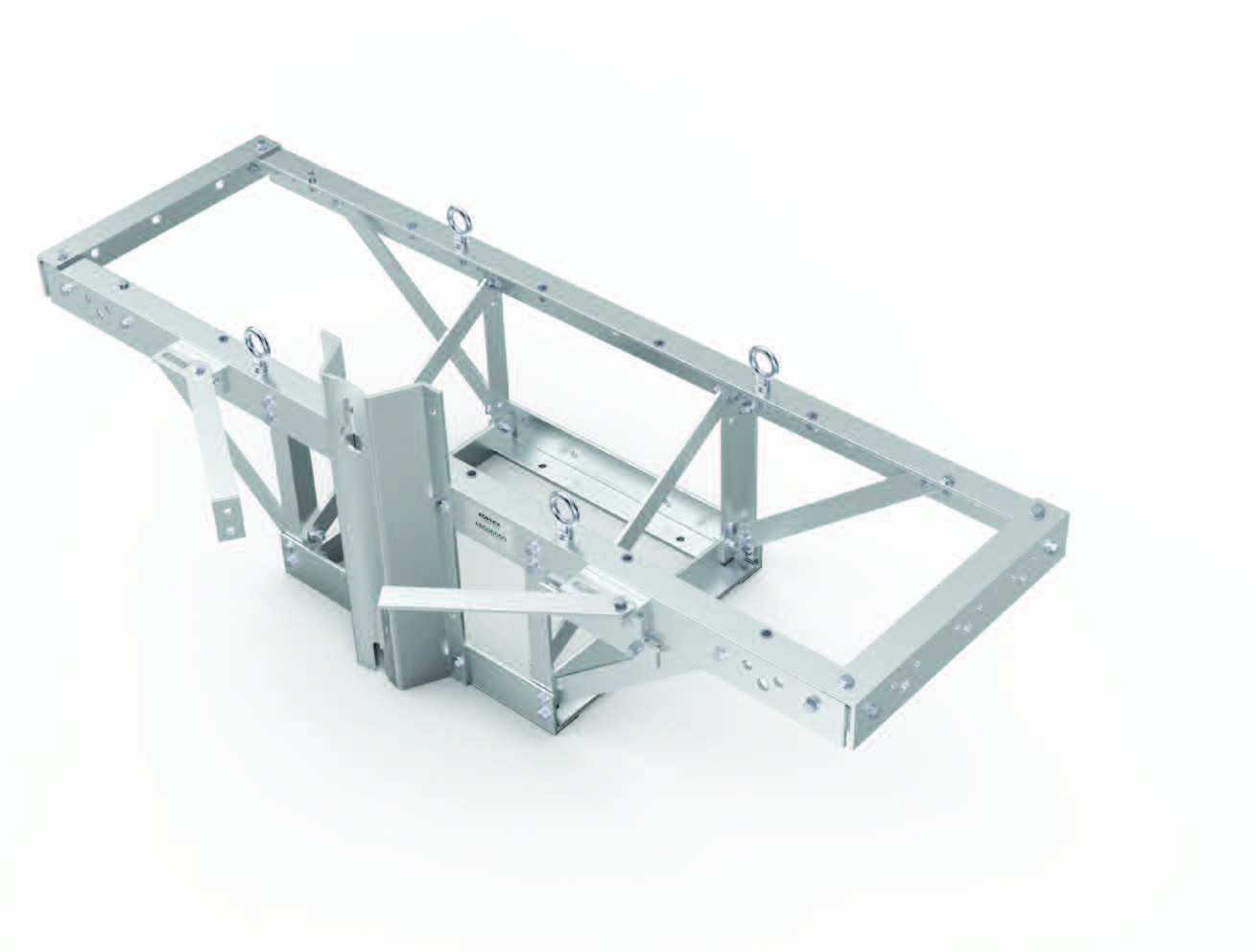

Pole capacitor rack - Image 2

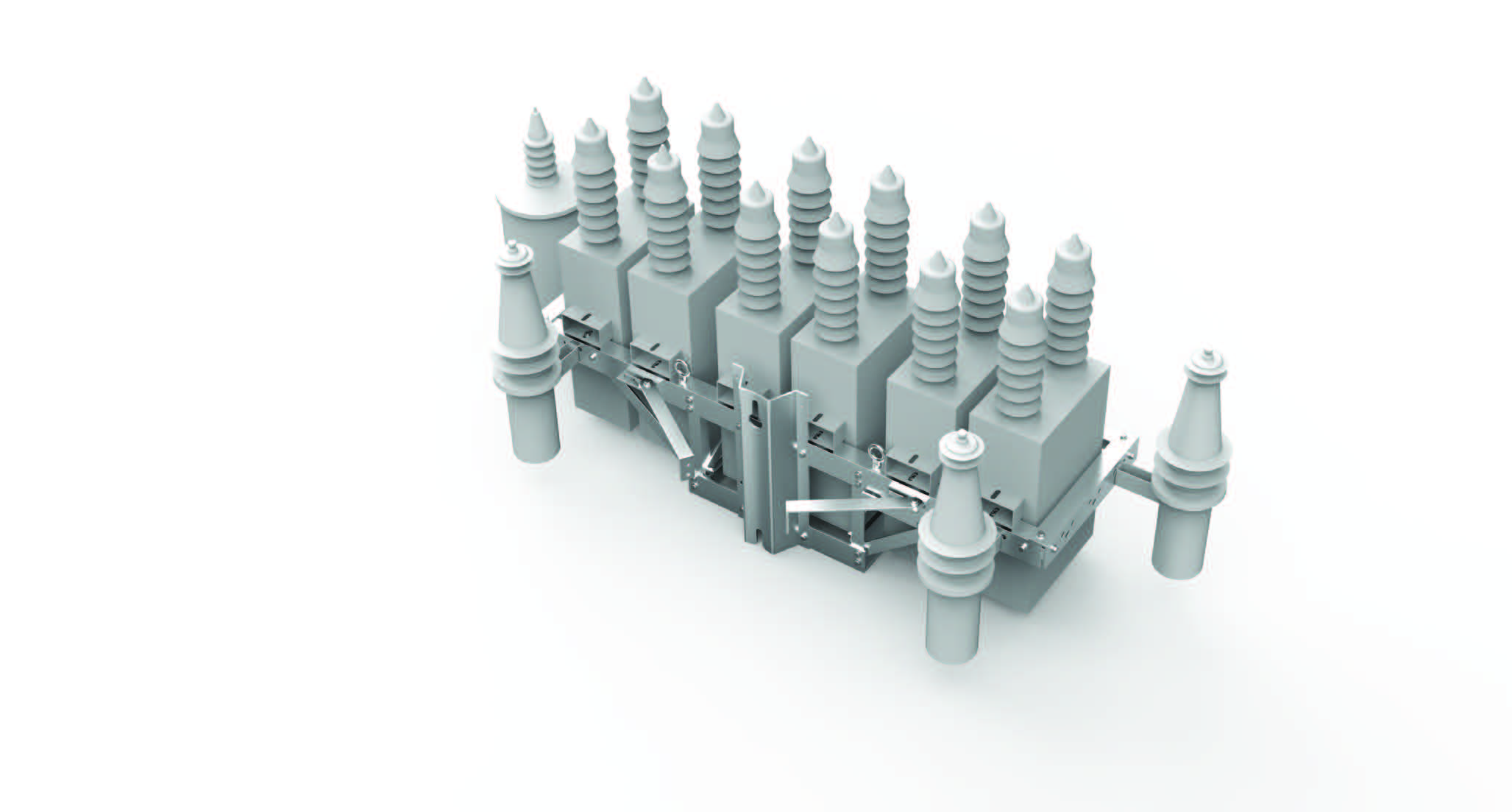

Pole capacitor rack - Image 3

Pole capacitor rack

Add to List
The Pole Capacitor Rack is a high-strength, aluminum mounting solution engineered for safe, reliable placement of capacitor banks on distribution poles. Its lightweight yet rugged bolted design simplifies installation while maintaining exceptional stability under real-world grid conditions.
Compatible with leading capacitor brands and adaptable to multiple configurations, it supports 3–6 capacitors, vacuum switches, and a pole-mounted transformer on a single system. With a 1,350-lb load rating and flexible pole diameter range, this rack delivers long-term durability and operational confidence for utilities modernizing their distribution networks.
Contact us
Emergency storm response

Product Support

Description

Engineered strength and flexibility for smarter pole-mounted capacitor installations.
  • High-strength aluminum construction for corrosion resistance, long service life, and reduced installation weight.
  • Robust bolted frame design increases structural stability and simplifies field assembly.
  • Supports 3–6 capacitors, up to 3 vacuum switches, and one pole-mounted transformer.
  • Cross-brand compatibility with Eaton, Hubbell, ABB, and other major capacitor manufacturers.
  • Flexible configuration options to meet diverse system design requirements and grid conditions.
  • Wide pole diameter range (6”–15”) for versatile deployment across existing infrastructure.
  • 1350-lb load rating designed to safely support modern capacitor bank assemblies.
  • Compact footprint (62.59” x 8.62” x 14.75”) for efficient pole space utilization,
  • Improves system reliability by supporting optimal capacitor placement for voltage regulation and power-quality enhancement.
Applications:
  • Mounting capacitor banks on distribution poles for voltage regulation.
  • Supporting capacitor installations in both urban and rural feeder systems.
  • Utility grid modernization and power-quality improvement programs.
  • Deployments requiring compact capacitor racks where substation space is limited.
  • New installations or retrofit projects across varied pole types and diameters.
